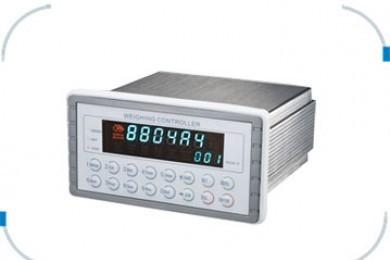

Product description:
GM8804C series batching controller is a series of batching system instrument specially developed for automatic batching scale. It is widely used in concrete mixing, asphalt mixture, metallurgical blast furnace, converter, chemical industry, feed, etc.
Technical features:
Can store up to 40 ingredients parameters, support four, six materials of the ingredients.
Automatic two - speed, three - speed control, has the choice of the point - moving small - throw function.
8 to 12 switch volume, support custom and self - detection function.
16 bit DA analog output is selected and the custom function is supported. The current voltage can be switched freely (gm8804c-a6).
The rs232/485 communication interface can be switched to support the RS and the standard Modbus protocol.
With batch and accumulative functions.
It has the function of super - poor detection and automatic drop correction.

Function type batching control.
Install panel mounting.
External dimensions: 181*165*98mm.
Work power AC95V~260V.
A/D conversion rate is 120 beats per second.
Maximum display accuracy of 1/30000.
Display form 2 segment 9 fluorescent tubes.
Button type full number 16 key.
Communication interface double serial port RS232+RS485.
The main features are high accuracy, high speed, anti-interference, anti-vibration, international power supply,CE+,EMC, front panel IP65.

Focused, efficient, reliable, stable, low price, our aim forever.
