Product description:

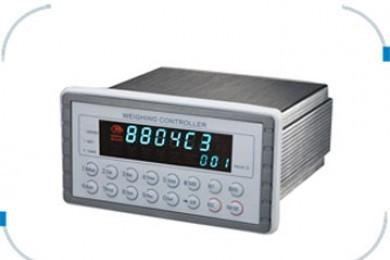

Lzgm8804c-3 weightless controller is a weighing control instrument developed and produced for dynamic real-time batcher equipment. Fully automatic control, continuous ingredients.
No manual intervention is required. It can be widely used in plastics, foodstuff, chemical industry, etc.
Technical parameters:
The maximum flow is automatically obtained.
The instrument display accuracy is one in 100,000.
Support multi - meter on - line scale continuous constant speed batching.
The bridge automatically determines the alarm.
Automatic control of material level.
All the way sensor input, all the way analog input control target flow.
High precision two-channel 16-bit DA analog output, output test and calibration function.
The analog output supports customization.
Rs232/485 optional serial port to support PROFIBUS communication.

Functional type loss control.
Install panel mounting.
External dimensions: 181*165*98mm.
Work power AC95V~260V.
A/D conversion rate is 120 beats per second.
Maximum display accuracy of 1/100,000.
Display form 2 segment 9 fluorescent tubes.
Button type full number 16 key.
Communication interface double serial port RS232+RS485.
The main features are high accuracy, high speed, anti-interference, anti-vibration, international power supply,CE+,EMC, front panel IP65.
